This article introduces some basic concepts of the CNB Artifact Registry. You will learn about:

• Supported artifact types
• How to manage the Artifact Registry on the page
• Permission control for the Artifact Registry
• Storage capacity statistics and billing
• Artifact migration

You can also skip this chapter and directly refer to the documentation for the corresponding artifact type.

Don't worry about missing key points; we will add guidance links to relevant sections of this article in each artifact document.

Artifact Types

CNB currently supports the following artifact types:

Artifact Type	Domain
Docker	docker.cnb.build
Docker Model	docker-model.cnb.build
Helm	helm.cnb.build
Maven	maven.cnb.build
npm	npm.cnb.build
ohpm	ohpm.cnb.build
Nuget	nuget.cnb.build
Composer	composer.cnb.build
PyPI	pypi.cnb.build
Cargo	cargo.cnb.build
Conan	conan.cnb.build

Managing the Artifact Registry

The hierarchical relationship between artifact types, group, and repository in the UI is as follows:

test-org  # group
├── maven
├── npm
├── ohnpm
├── nuget
├── composer
├── pypi
├── cargo
├── conan
└── test-git-repo # repository
    ├── docker
    ├── helm
    └── docker model

As shown above, Composer/Maven and other artifact types belong to a group, while Docker/Helm/Docker Model artifacts belong to a repository under the group.

Therefore, their usage steps will differ.

Using Docker/Helm/Docker Model Artifacts

Docker/Helm/Docker Model artifacts belong to a repository, so no manual creation is required.

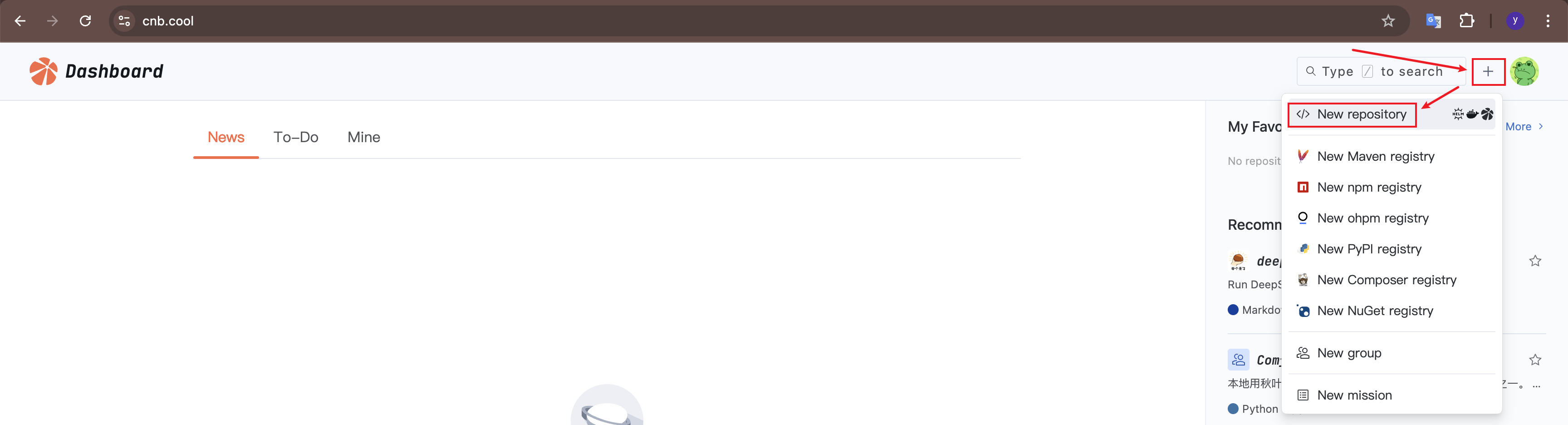

After logging in to CNB, you can click the "+" button in the upper right corner to create a new repository

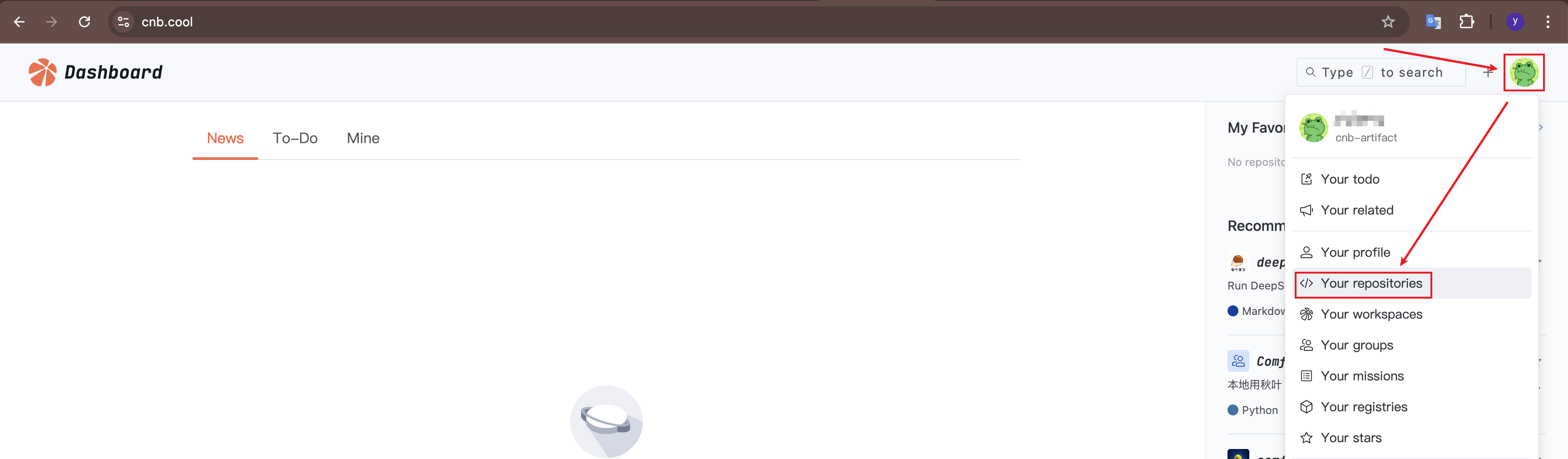

Alternatively, click your avatar in the upper right corner, select "Your Repositories" and use an existing repository

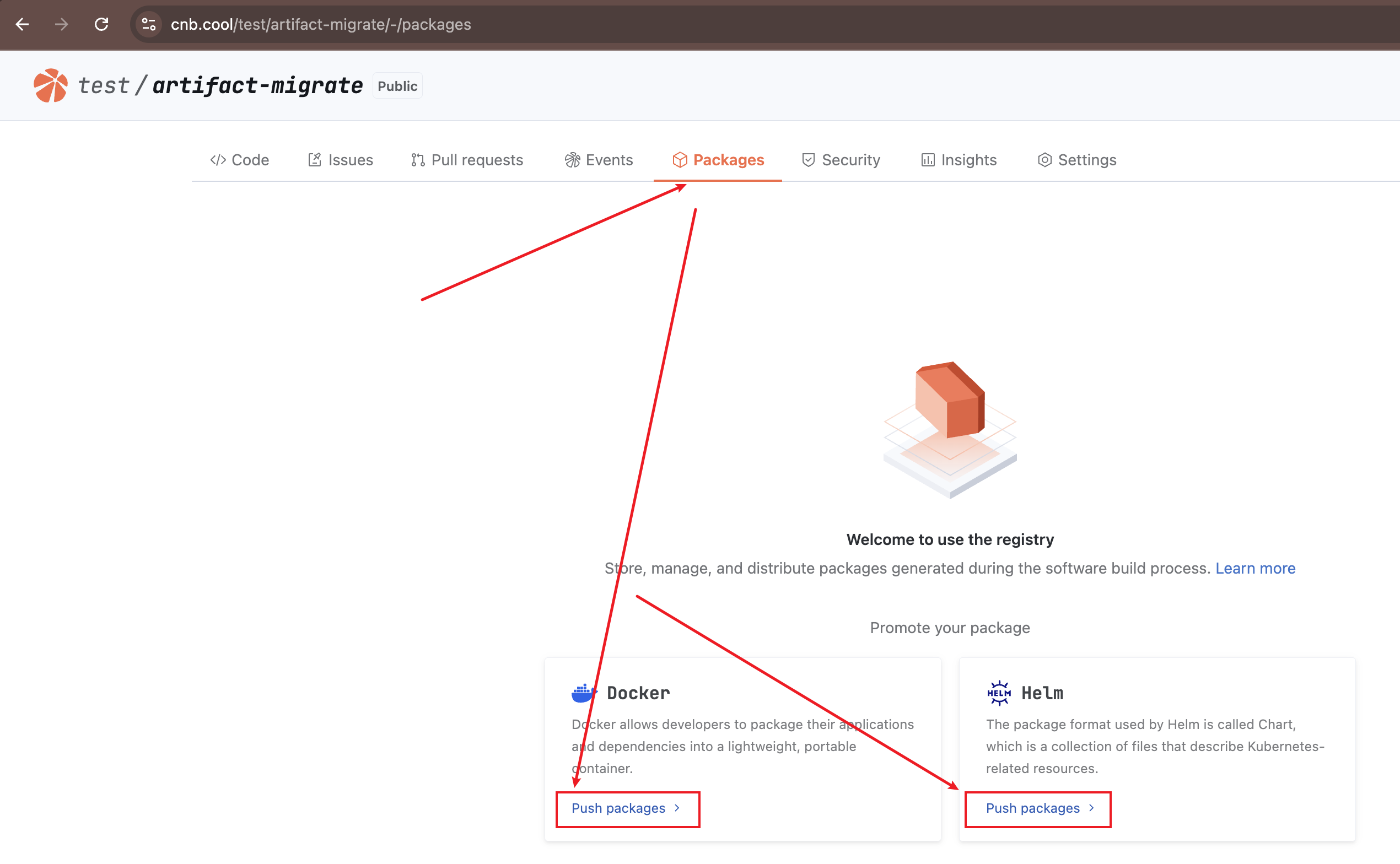

After entering any repository, click "Packages" to see Docker/Helm/Docker Model artifacts. Click "Usage Guidelines" to view the operation guide

Using Composer/Maven Artifacts

Creating an Artifact Registry

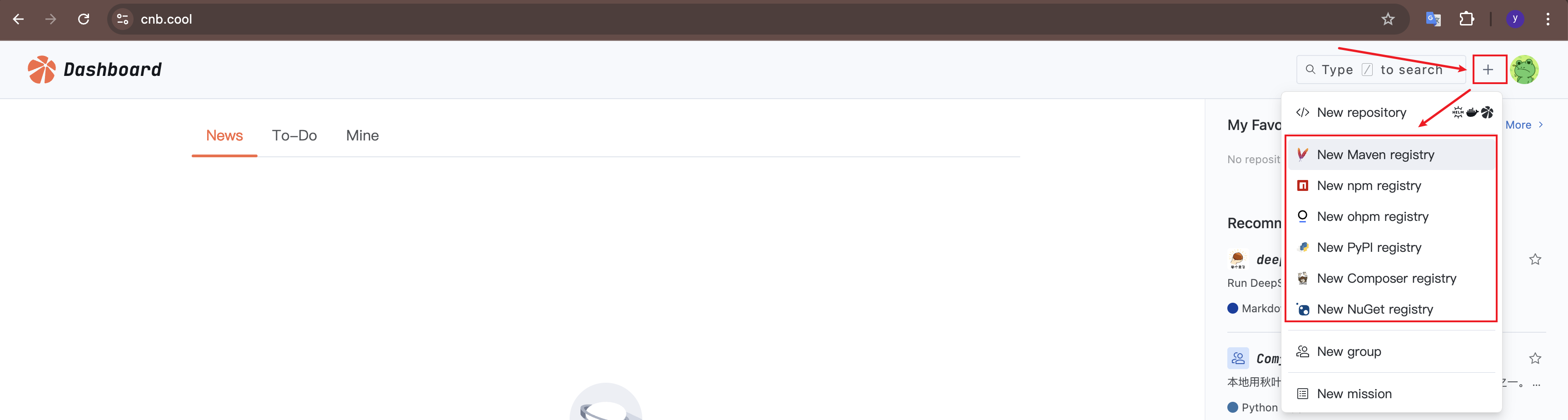

You can click the "+" button in the upper right corner to create a new artifact registry

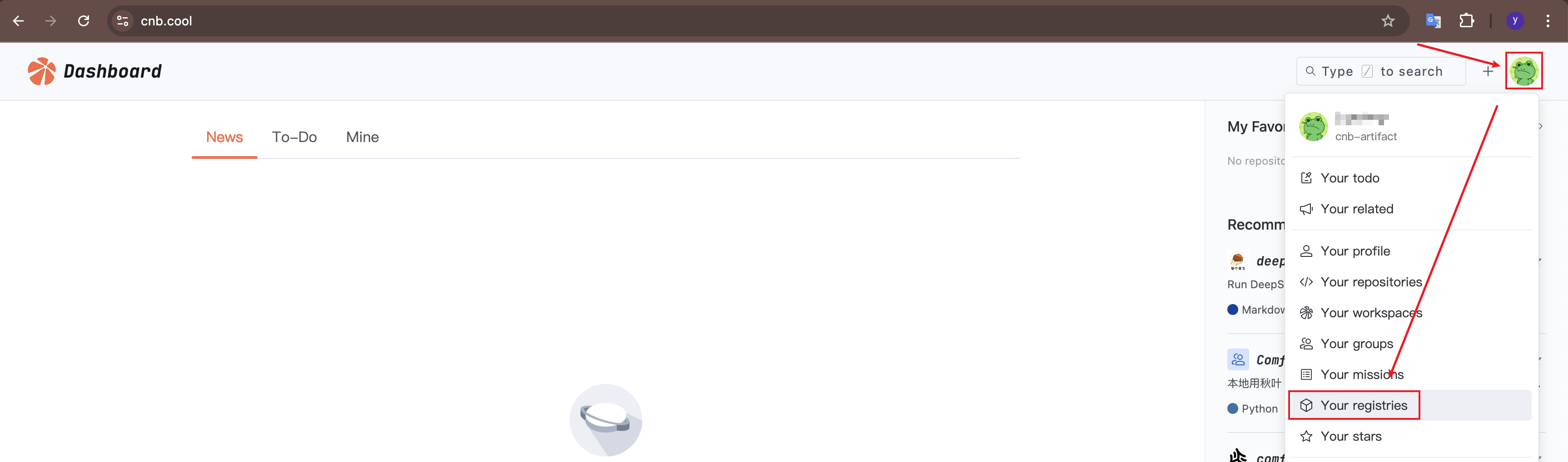

Alternatively, click your avatar in the upper right corner, select "Your registries" and use an existing one

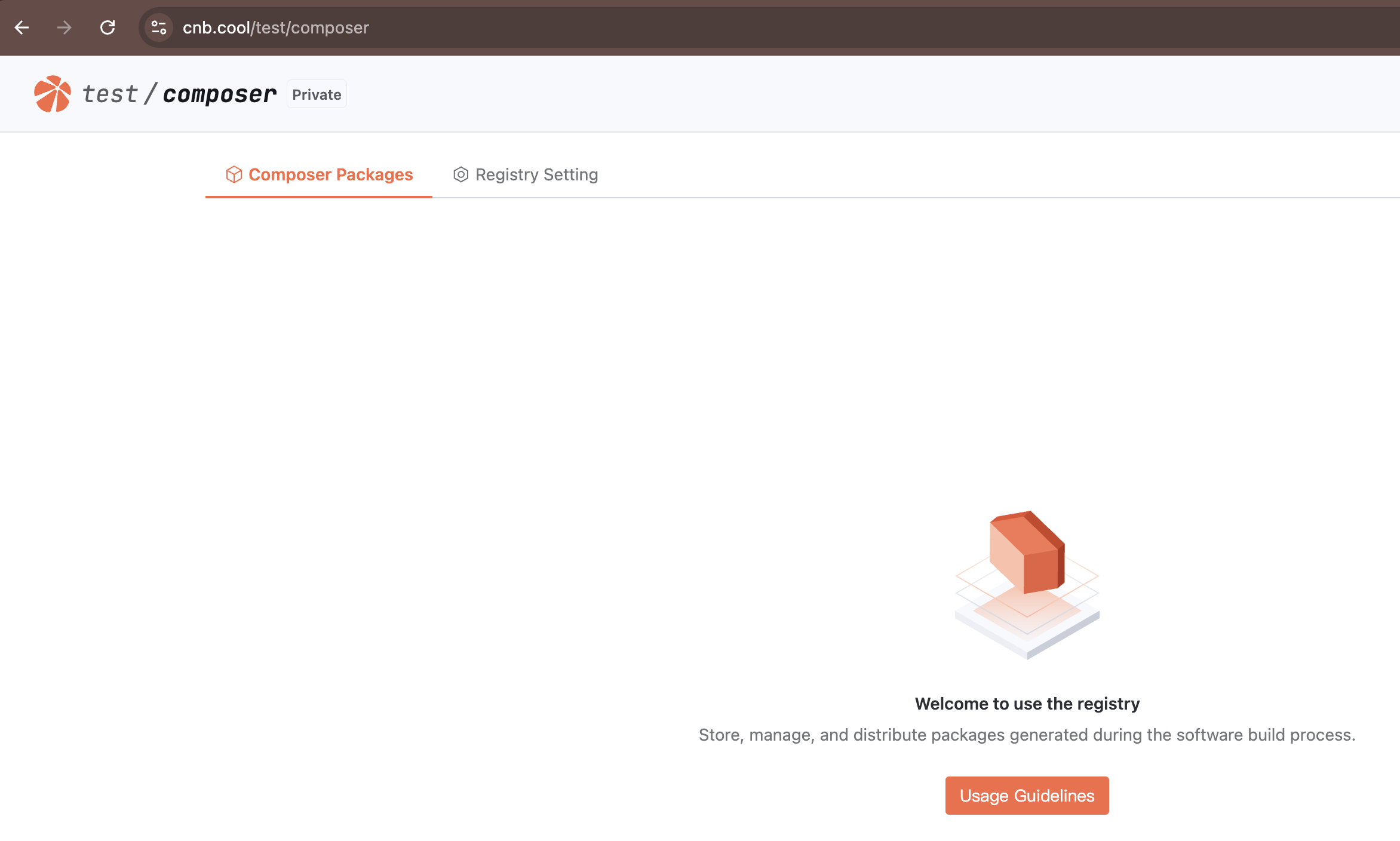

After entering the artifact registry, click "Usage Guidelines" to view the operation guide

Deleting Artifacts

For example, with Composer artifacts (other artifact types are similar, including Docker/Helm/Docker Model):

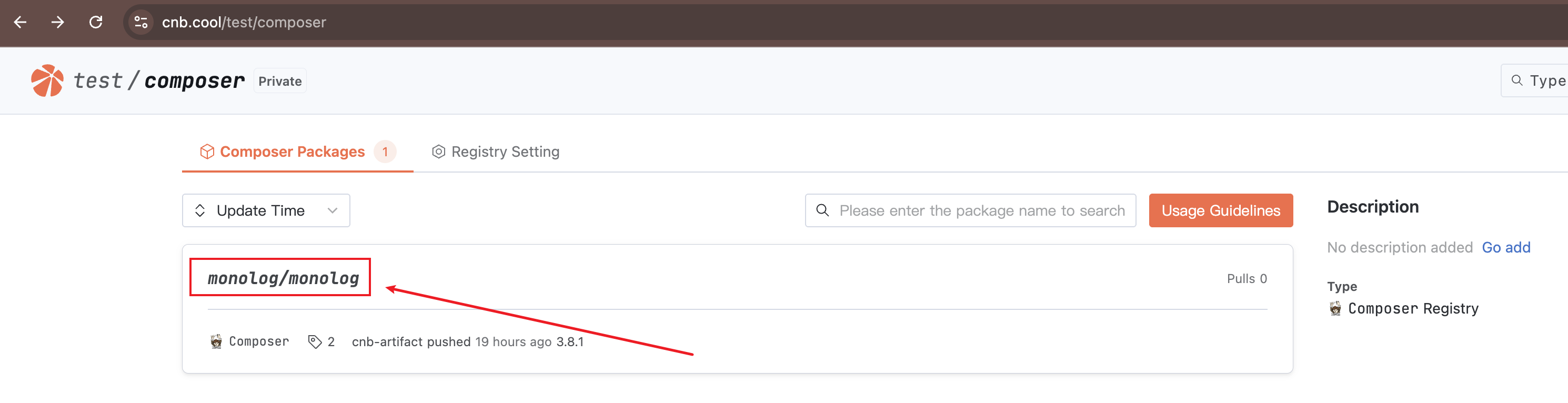

After pushing artifacts to the registry, click the artifact name to enter it.

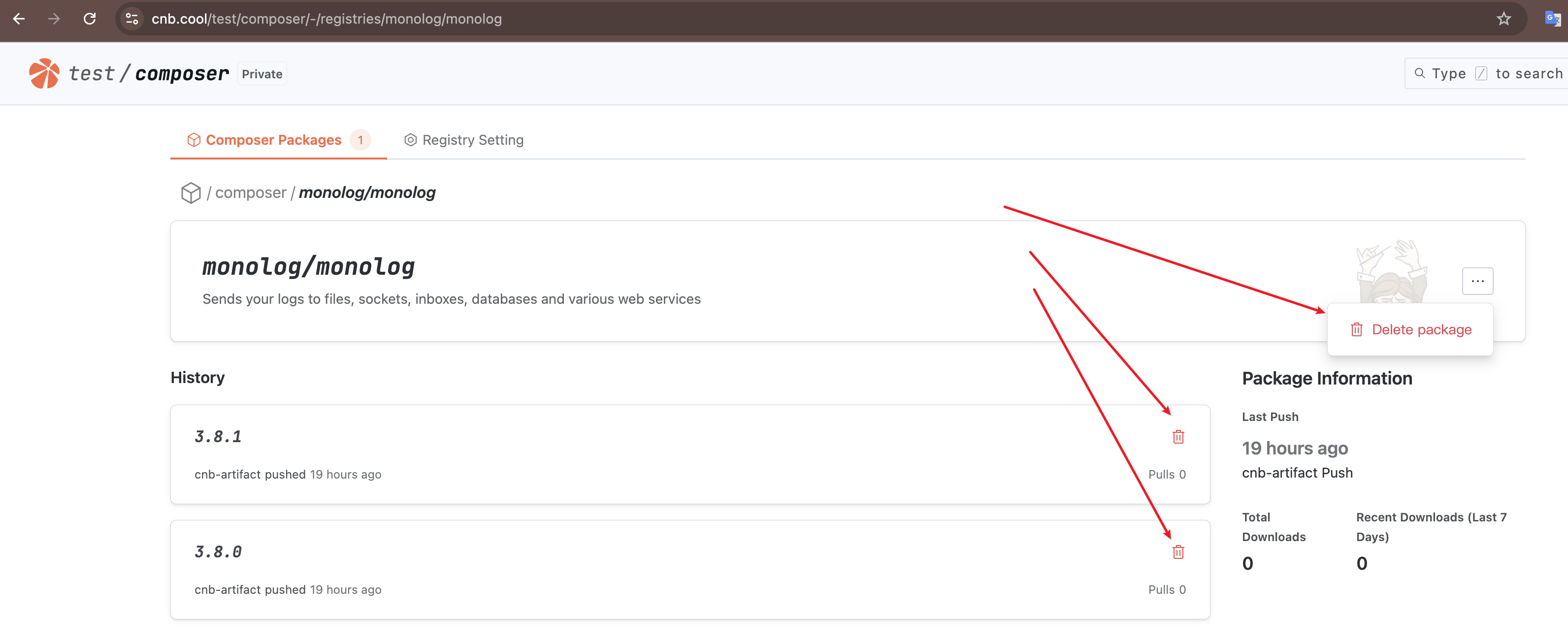

Click "Delete Package" to delete the entire artifact. Click the "Delete" icon to delete a specific version.

Deleting an Artifact Registry

Docker/Helm/Docker Model artifacts do not require manual creation, so they also do not require manual deletion.

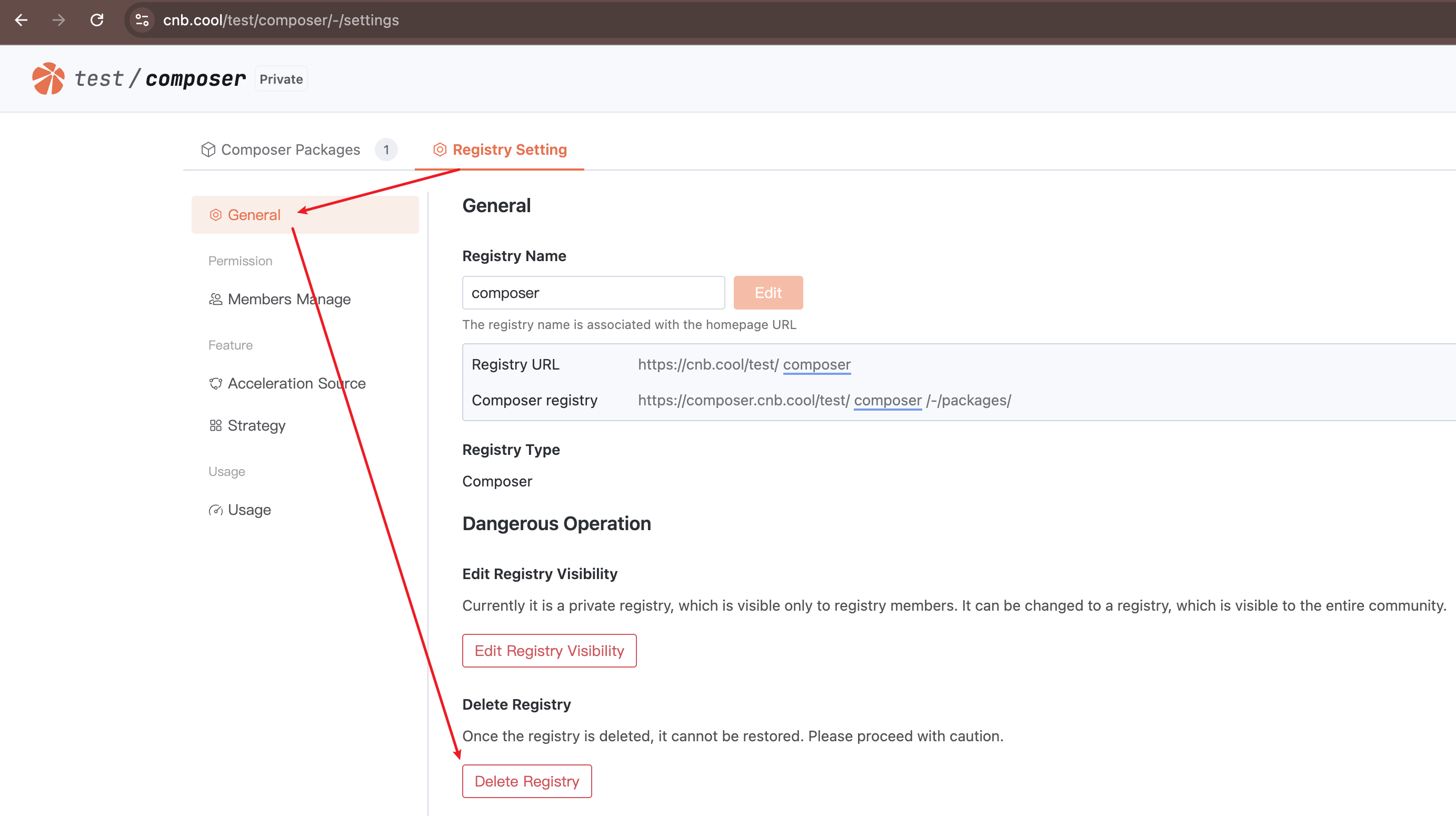

Other artifact types can be deleted in "Registry Setting"

Obtaining the Artifact Registry Address

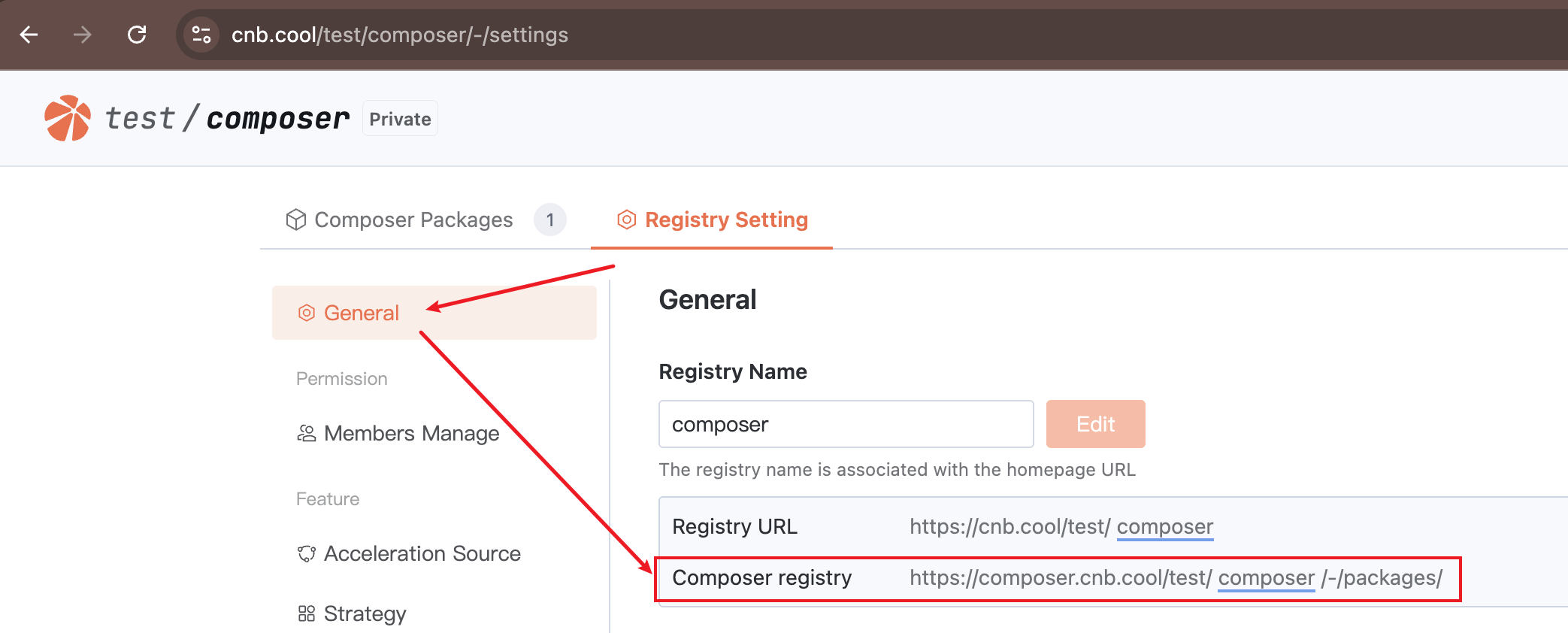

You can view the artifact registry address in "Registry Setting" > "General"

Permission Control

Roles

The visibility of Docker/Helm/Docker Model artifacts is consistent with the visibility of the repository they belong to. User access permissions for artifacts are determined by their role in the repository.

For Composer/Maven and other artifact types, visibility depends on the artifact registry's visibility. User access permissions for artifacts are determined by their role in the artifact registry.

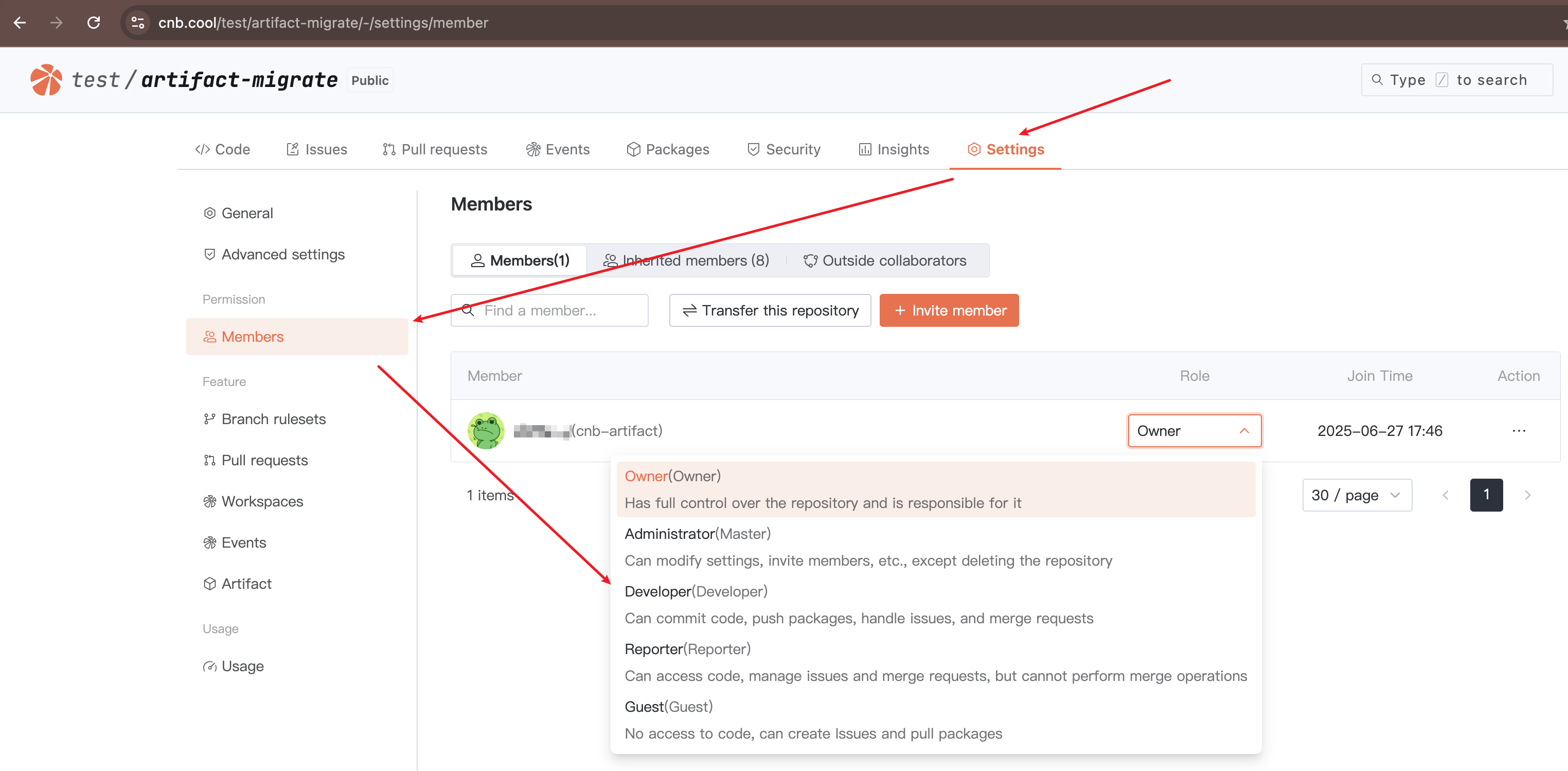

A user's role in a repository can be viewed in "Repository" > "Settings" > "Members":

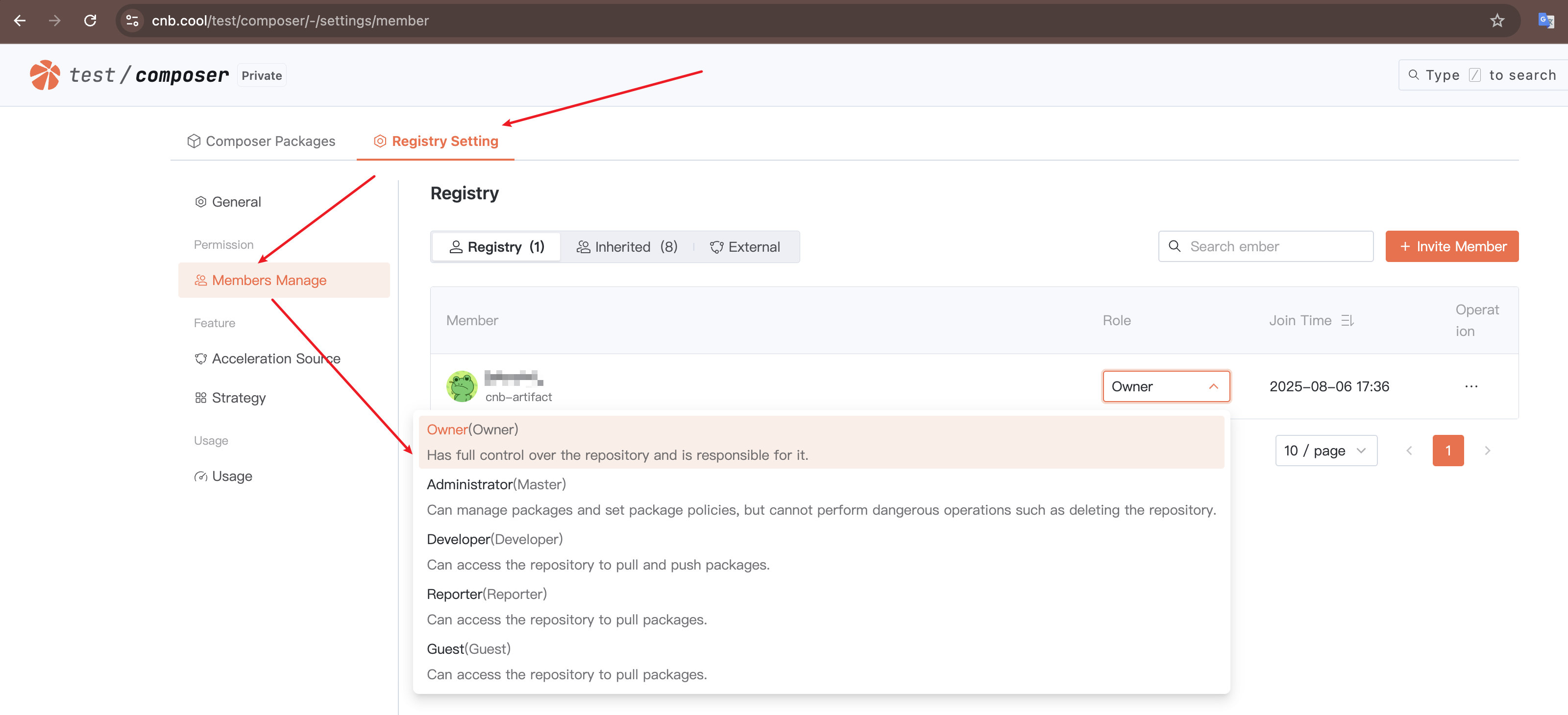

A user's role in an artifact registry can be viewed in "Artifact Registry" > "Registry Setting" > "Members Manage":

The table below lists the correspondence between artifact behaviors and required roles:

Resource	Behavior	Required Role
Public Artifact Registry Artifacts	Pull	Anyone can pull without authentication
Public Artifact Registry Artifacts	Push	Developer or above
Public Artifact Registry Artifacts	Delete	Administrator or above
Private Artifact Registry Artifacts	Pull	Guest or above, requires authentication
Private Artifact Registry Artifacts	Push	Developer or above
Private Artifact Registry Artifacts	Delete	Administrator or above

Access Tokens

When using command-line tools to read or write artifacts, whether an operation is authorized depends on the user's role and the permissions of the access token in the request.

If an access token is missing, the system treats it as anonymous access, which limits operation permissions.

The detailed authentication policy for the artifact registry is as follows:

1. Login: If the access token is valid, login is allowed; otherwise, it is denied.

2. Anonymous operations: Only pulling from public artifact registries is allowed; all other operations are denied.

3. Query, pull, and push operations: If the user's role has the required permissions and the access token's registry-package scope includes the operation, it is allowed; otherwise, denied. Deletion operations are similar.

4. If the access token specifies a scope (e.g., a specific repository or artifact registry) and the scope matches the accessed resource, the actual authorization scope is returned. Otherwise, the visibility of the resource is checked. If the resource is public, pull operations are still allowed, but other operations are denied. If the resource is private, all operations are denied.

5. If the user, token, or accessed resource is in an abnormal state (e.g., frozen), all operations are denied. Even if an incorrect access token is provided (e.g., expired), pulling from a public artifact registry will be denied.

The above policy is illustrated below (using pull operations as an example, where "token" refers to the CNB access token and "scope" refers to the access token's authorization scope):

Creating an Access Token

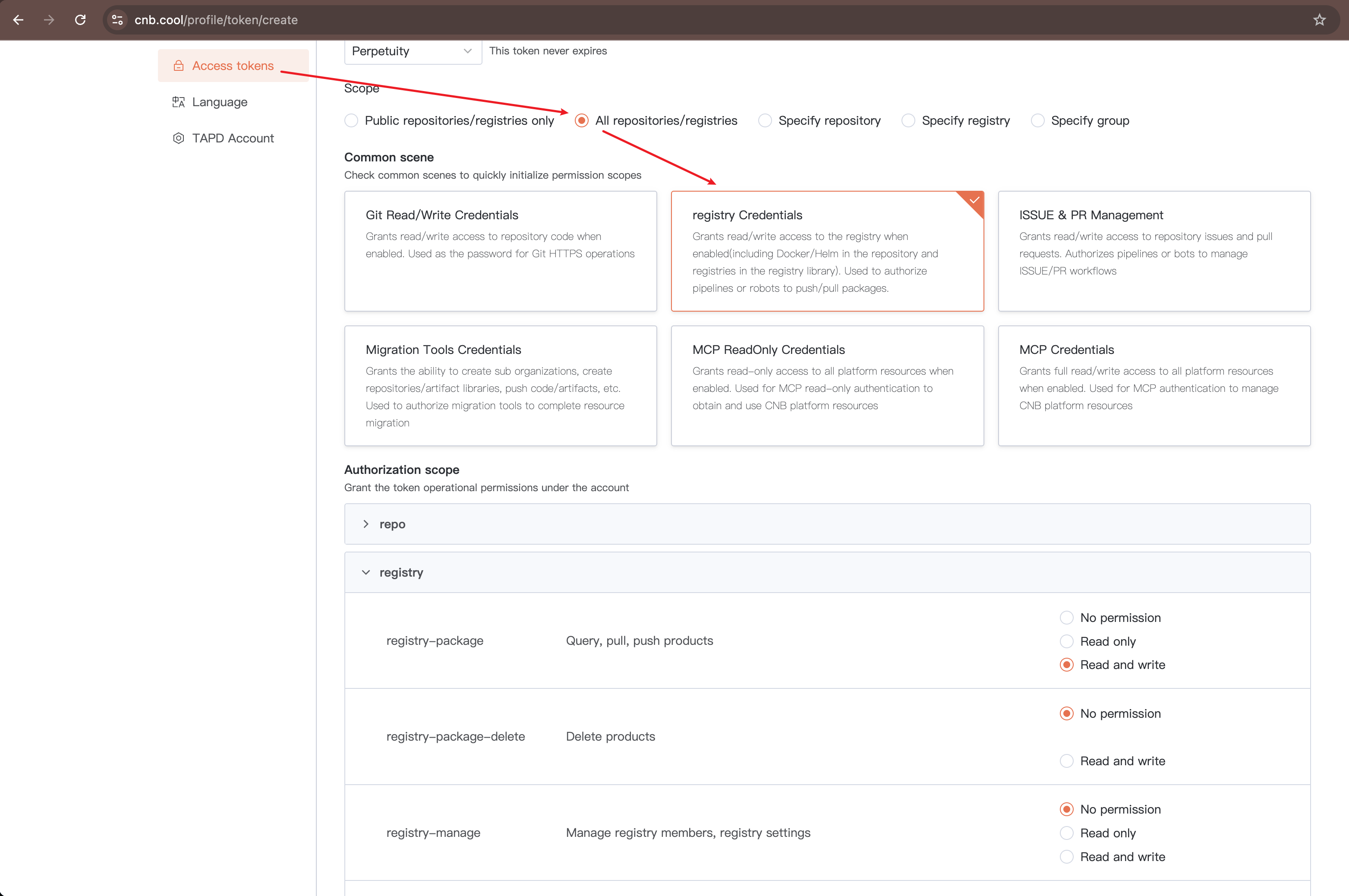

You can click your avatar > "Settings" > "Access tokens" > "Add Access Token" to create a new access token.

For access token permissions, only the "Authorization Scope" registry section needs attention.

When selecting "Common Scenarios" as "Artifact Registry," only registry-package read/write permissions are granted by default.

If you need to delete artifacts via command-line tools (e.g., npm unpublish), you must also check registry-package-delete read/write permissions.

Additionally, "Specify Artifact Registry" in "Usage Scope" cannot select Docker, Helm, and Docker Model artifacts. Instead, select "Specify Repository" and then set "Common Scenarios" to "Artifact Registry."

Using Tokens in Workspaces and Cloud Native Build

There are three ways to use tokens:

1. Directly use environment variables ${CNB_TOKEN_USER_NAME} ${CNB_TOKEN} (recommended)
2. Manually create an access token and use it directly (not recommended)
3. Manually create an access token, write it to the Secret Registry, and then import it as an environment variable (neutral)

About Method 1:

CNB provides built-in access tokens for Workspaces and Cloud Native Build (CI pipelines). If no special requirements exist, you can directly use these environment variables without manually creating additional access tokens. For details about the permissions of this access token, refer to CNB_TOKEN.

Capacity Statistics

Billing is based on the storage space occupied by artifacts hosted on CNB.

• For Docker/Helm/Docker Model, you can view the capacity occupied by each artifact in "Repository" > "Settings" > "Usage"
• For other artifact types, you can view the capacity occupied by each artifact in "Artifact Registry" > "Registry Settings" > "Usage"

PS: For Docker/Docker Model artifacts, duplicate base images are deduplicated before calculating capacity.

Artifact Migration

If you need to batch migrate artifacts from other registries to the CNB Artifact Registry, you can refer to and use the CNB Artifact Migration Tool.
