Code Wiki

About 502 wordsAbout 2 min

Code Wiki explains how to generate Wiki documentation automatically from repository code with a pipeline.

When to use: when you want code and docs to stay together — for example letting a newcomer read generated architecture notes before diving in, or giving a public project a documentation center that keeps itself up to date. Once the pipeline is configured, a Wiki portal appears on the repository homepage.

Generating via NPC

The quickest way is to summon the npc/codewiki NPC to generate or update CodeWiki on demand, without configuring .cnb.yml in your own repository.

Star the npc/codewiki repository.
In the repository's Issue or Pull Request comments, summon the NPC with @npc/codewiki(codewiki) followed by the task, for example:
```
@npc/codewiki(codewiki) generate codewiki
@npc/codewiki(codewiki) update codewiki
```

The NPC checks the environment, starts the CodeWiki container, tracks the run status, validates the output, and queries the platform-side knowledge base to confirm the ingestion result.

By default this NPC uses the CNB AI endpoint with knowledge base ingestion enabled (embedding model bge-m3). For configurable parameters and fallback behavior, see the npc/codewiki repository.

For NPC concepts and summoning rules, see NPC.

Generating via Pipeline

Use the pipeline plugin when you need Wiki generation to run automatically on events such as tag pushes.

Step 1: Configure the Pipeline

Plugin image: cnbcool/codewiki

Configure the CodeWiki plugin in the repository's .cnb.yml. It is recommended to use the tag_push event to avoid frequent Wiki generation. For more event types, see Build Trigger Rules.

.cnb.yml
$:
  tag_push:
    - docker:
        image: cnbcool/codewiki:latest
      stages:
        - name: generate codewiki
          timeout: 10h
          settings:
            git_doc_dir: /data/codewiki/${CNB_REPO_SLUG}

Key parameters:

Parameter Name	Description	Default Value	Required
`git_doc_dir`	Directory for generating Wiki documentation	None	Yes
`use_codebuddy`	Whether to use the CodeBuddy endpoint; `1` for CodeBuddy, `0` for CNB AI	`1`	No
`llm_model_name`	Name of the LLM model to use	`deepseek-v3.1`	No
`knowledge_enabled`	Whether to enable knowledge base ingestion	`true`	No
`knowledge_embedding_model`	Knowledge base embedding model name	`hunyuan`	No
`knowledge_chunk_size`	Text chunk size (token count)	`1500`	No
`knowledge_chunk_overlap`	Overlapping token count between adjacent chunks	`0`	No

Tips

Ingestion is enabled by default: generated Wiki docs are automatically ingested into the repository knowledge base. Set knowledge_enabled to false to opt out.

For more information, see the cnbcool/codewiki plugin documentation.

Step 2: Access CodeWiki

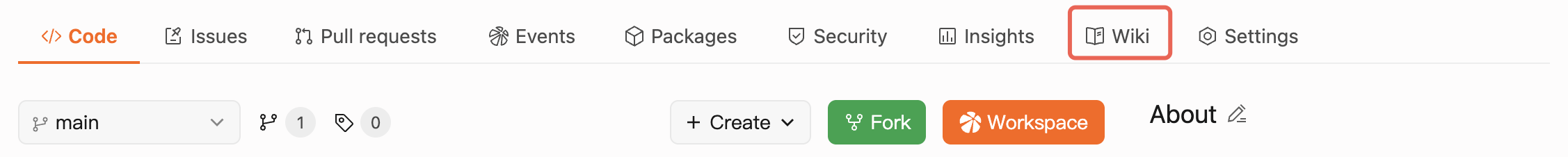

Click the Wiki portal on the repository homepage to access the CodeWiki page.

Automatic Knowledge Base Integration

Content generated by CodeWiki is automatically synced to the repository's knowledge base. Once synced, the repository will be marked as a knowledge base, enabling AI-based Q&A on CodeWiki content.

For more details on knowledge base configuration and usage, see Knowledge Base.
