Configuration File

About 538 wordsAbout 2 min

Introduction

The configuration file defines the build tasks and step operations to execute when specific events occur in the code repository (such as pushing a new commit or creating a pull request).

Configuration File Specifications

File Standards
- The file is named .cnb.yml and is stored in the root directory of the code repository, following the Configuration as Code principle.
- Configuration changes can be managed through the Pull Request process, suitable for open-source collaboration.
- The build process is version-controlled alongside the source code, ensuring transparency and traceability of changes.
Advantages of YAML Format
- Supports nested structures and key-value pairs, clearly expressing complex configurations.
- Easy to extend and modify, adapting to dynamic needs, with comments to enhance collaboration efficiency.

For more details, see the Syntax Manual and Trigger Rules.

Example Configuration

Here is an example of a Cloud Native Build configuration:

.cnb.yml
main:
  push:
    - docker:
        image: node:22
      stages:
        - name: install
          script: npm install
        - name: test
          script: npm test

Example Workflow Description

Trigger Condition: A build is triggered when a push event occurs on the main branch (i.e., a new commit is pushed to the main branch).
Execution Environment: The node:22 Docker image is used as the task execution environment.
Task Steps:
- Execute npm install to install dependencies.
- Execute npm test to run tests.

Basic Syntax

The basic structure of the configuration file is as follows:

.cnb.yml
main:
  push:
    - name: push-pipeline1
      stages:
        - script: echo 1
    - name: push-pipeline2
      stages:
        - script: echo 2

An event can contain multiple pipelines, supporting both array (recommended) and object syntax, and these pipelines will run concurrently. Where:

main represents the branch name
push and pull_request represent trigger events
A single pipeline contains a set of stages that are executed sequentially within the same build environment (physical machine, virtual machine, or Docker container).

For more detailed syntax instructions, refer to: Syntax Manual

Configuration File Version Selection

The rules for selecting the configuration file version are the same as for Code Version Selection.

Syntax Checking and Auto-Completion

VSCode

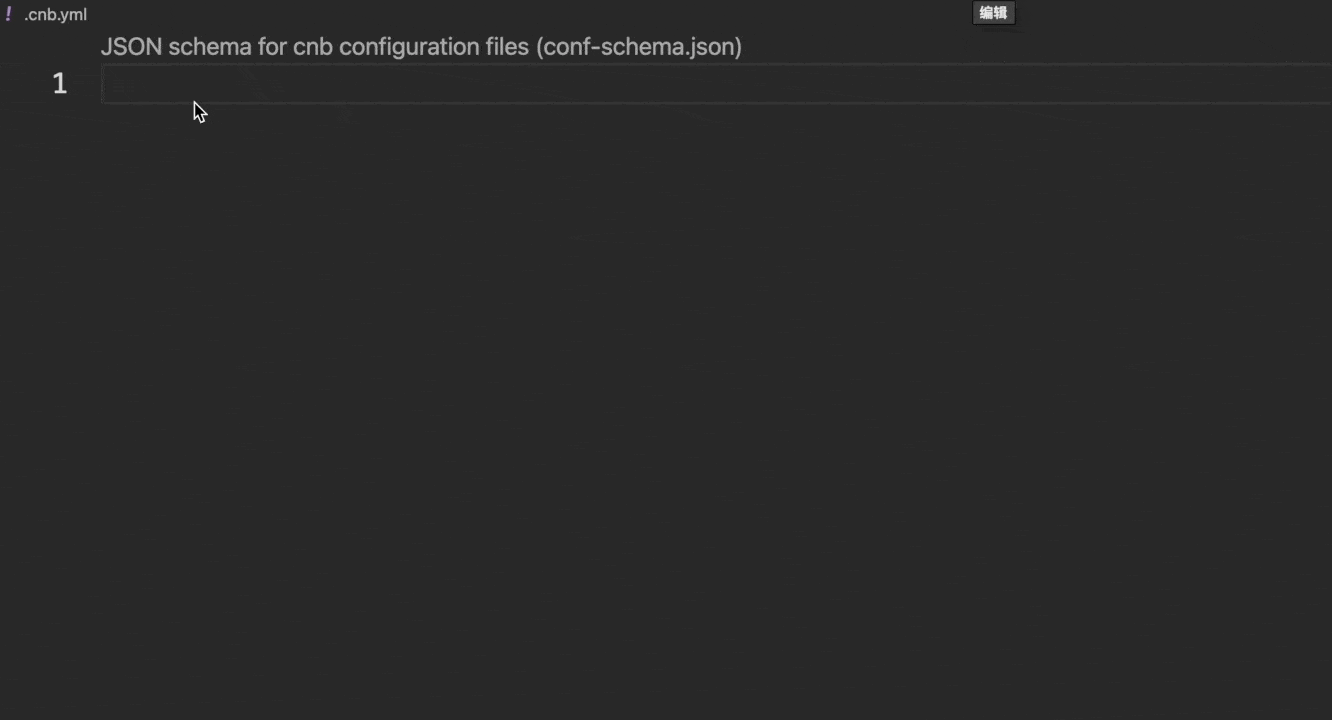

It is recommended to use the Cloud Native Development environment to write configuration files, as it natively supports syntax checking and auto-completion, as shown below:

If developing locally in VSCode, configure it as follows:

Install the redhat.vscode-yaml plugin.

Add the following to the settings.json configuration file:

{
  "yaml.schemas": {
    "https://docs.cnb.build/conf-schema-en.json": ".cnb.yml",
    "https://docs.cnb.build/tag-deploy-schema-en.json": ".cnb/tag_deploy.yml",
    "https://docs.cnb.build/web-trigger-schema-en.json": ".cnb/web_trigger.yml",
    "https://docs.cnb.build/settings-schema-en.json": ".cnb/settings.yml",
    "https://docs.cnb.build/code-security-conf-schema-en.json": ".cnb/security/code_scan_config.yml"
  }
}

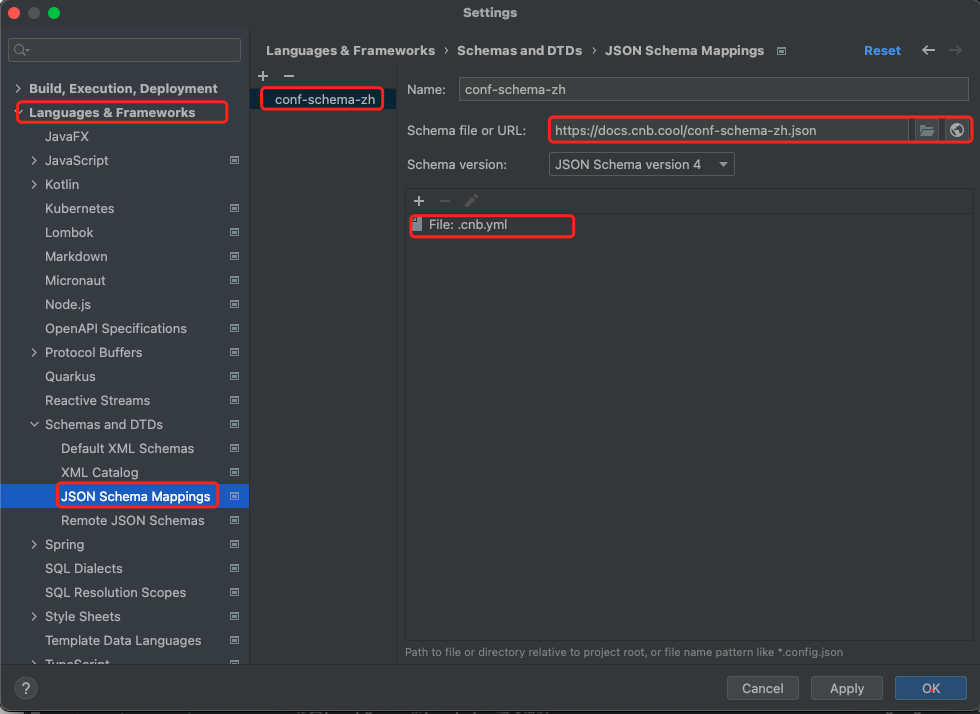

JetBrains

Open Settings / Preferences.
Navigate to Languages & Frameworks -> Schemas and DTDs -> JSON Schema Mappings.
Click + to add a new mapping. Add five mappings in total:
- https://docs.cnb.build/conf-schema-en.json → .cnb.yml
- https://docs.cnb.build/tag-deploy-schema-en.json → .cnb/tag_deploy.yml
- https://docs.cnb.build/web-trigger-schema-en.json → .cnb/web_trigger.yml
- https://docs.cnb.build/settings-schema-en.json → .cnb/settings.yml
- https://docs.cnb.build/code-security-conf-schema-en.json → .cnb/security/code_scan_config.yml
